Bearley Junction: gwrbj3017

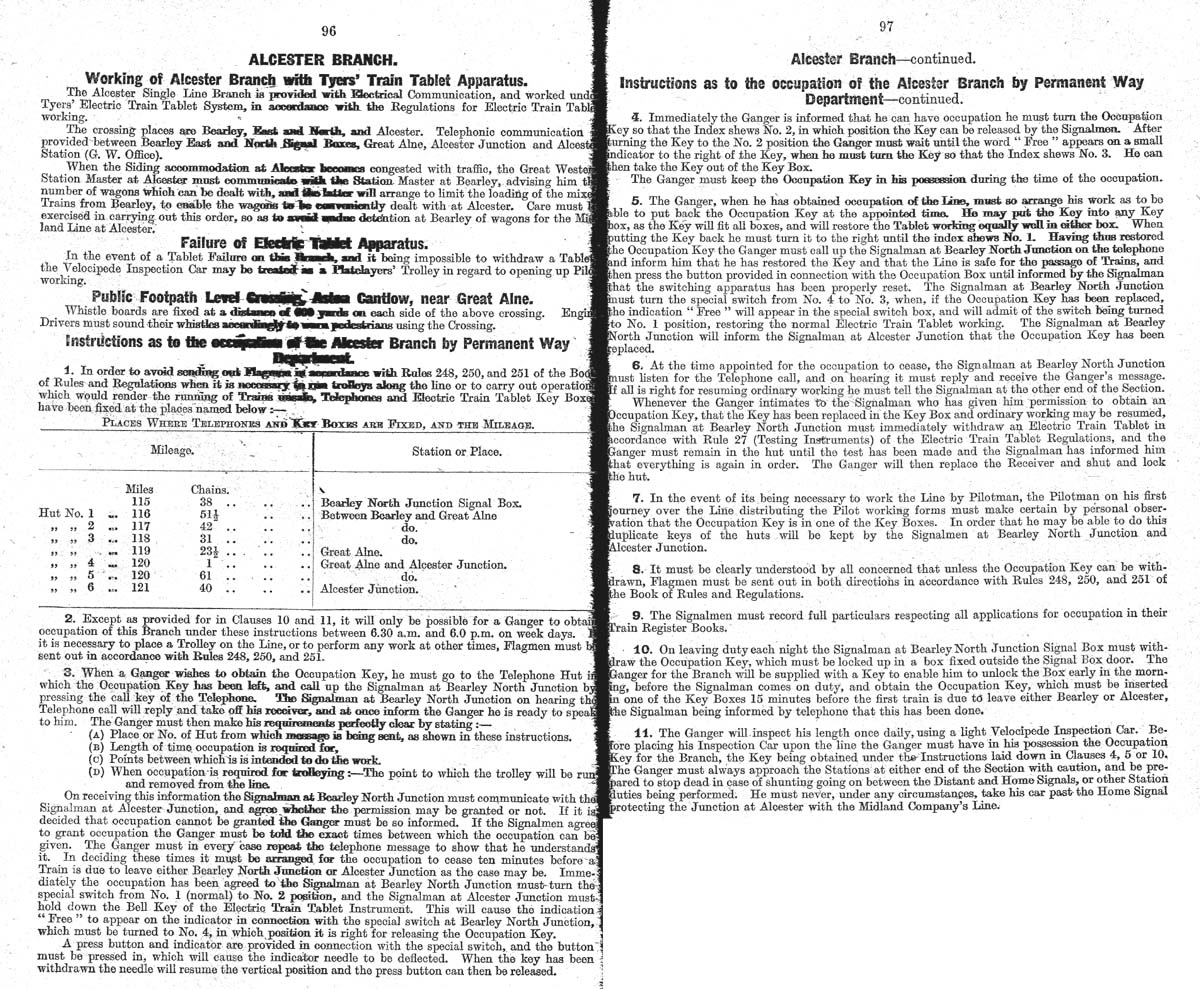

Great Western Railway Appendix to the Service Time Tables
(dated March 1921) detailing the local instructions as to the occupation of the
Alcester Branch by Permanent Way Department. At the same time as the
introduction of the Tyer's No 6 Single Line Electric Train Tablet ('misc_equip236'), the Great Western Railway
used the new telegraph wiring along the branch to provide an Economic System of
Maintenance. For more information about the Great Western Railways
Economic (and Motor Economic) System of Maintenance see 'misc_equip237'.
The Economic System of Maintenance commenced operation on
the Alcester Branch Line on 1st January 1906 and involved nine telephones and
occupation key instruments located at intervals along the six mile, 40 chain
route. This allowed the branch line to be maintained by a single gang of six
men compared with two gangs of four previously. The authorised cost was
£200, 16 shillings which was estimated to provide an annual saving of
£105, 6 shillings. The costs included a Velocipede inspection car and
mechanical trolley. The number of telephones and occupational key instruments
was reduced to eight when the construction of the North Warwickshire Line
shortened the line and these are listed in the appendix.
At least two of the Permanent Way huts, which contained the
telephone and occupation key instruments can be seen in photographs at;
Alcester Junction (Hut No 6) 'mra476' and
2½ mile post (Hut No 3) gwrac2297. While
other Permanent Way huts can be seen at Great Alne 'gwrga796a', and Bearley North (Alcester branch
Junction by Edstone Aqueduct) 'gwrbj790a' and
Bearley North (North curve Junction) 'gwrbj787a'.
The Hut No 6 at Alcester Junction has a boarded decking over the branch line,
with track at right angles leading to the PW hut, so was probably used for
storing either the Velocipede car or mechanical trolley, which would have been
man-handled on and off the track at this point. This PW hut seems to have been
erected during the work to reopen the line in 1922, as it does not appear in
'mra137'. In 1923 the Great Western Railway
Magazine records; Mr T Jeffs, E Knight and Mr T Woodfield moving from Bearley
to Great Alne as Ganger, Sub-ganger and Underman respectively.
Robert Ferris
