Birmingham Snow Hill Station: gwrbsh1680

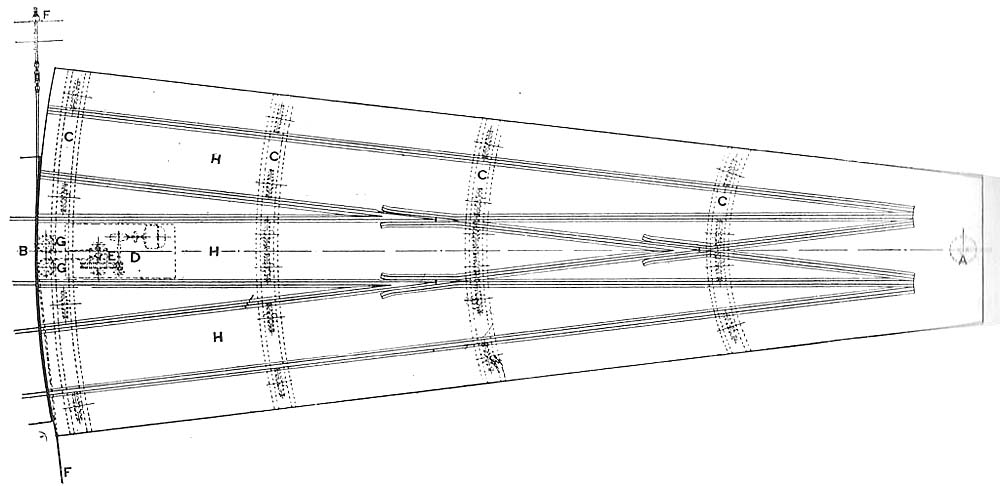

Plan of the Sector Table located at the south end of Snow Hill station's bay platforms Nos 3 and 4. The operation of this Sector table is described in detail in GWR Magazine Article – Sector Table. The key parts are indicated on the plan are:
A - Sector Table Pivot
B - End of Sector Table
C - Sector Table Support Rails
D - Motor and Gears fixed to underside
E - Rope Winding Barrel
F - Rope Attachment Points
G - Rope Guide Pulleys
H - Three converging Rail Tracks

Robert Ferris
