Birmingham Snow Hill Station: gwrbsh1769
|

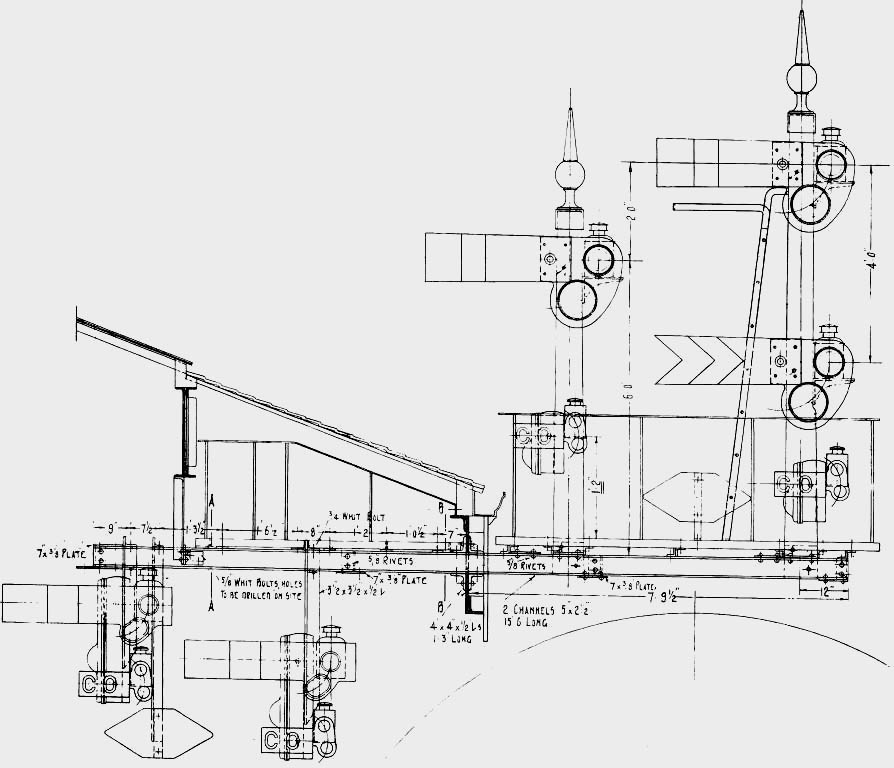

Official Great Western Railway Drawing of the signals for
both the down platform line under the canopy and down main line protruding from
the canopy above the down platform line (note the loading gauge arc). The
drawing is dated 5th August 1936, but little has changed since the original
construction, with the exception of the addition of the two white diamond
symbols which indicate that track circuit supervision has been installed.
Photograph gwrbsh1745 shows the rear of the down
main line signals which protrude over the tracks and photograph
gwrbsh1768 shows the down platform line signals
under the canopy. This drawing shows differences between the two groups of
semaphore signal arms; 1) Those external to the canopy over the track have
conventional wooden arms with a slight taper, but are only three foot long.
This allowed the signals to located closer together and lower which improved
sighting for trains entering the station from Snow Hill Tunnel (see
gwrbsh1744). 2) Those under the canopy are the
same length, but the arms are metal and their pivot point has been moved
towards the arms centre to fit in with the clearance required under the
canopy. The spectacle lenses are also smaller. Both groups of signals have
subsidiary Calling On (CO) signal arms below the main signals. The
arms of these signals are only twelve inches long to reflect their relative
importance. Calling On Signals were provided to authorise a driver
to proceed forward cautiously into the section ahead as far as the line was
clear. Normally a Calling On signal was not lowered until the train
was brought to a stand at it (Rule 44 - 1933).
