Moor Street Station: gwrms1205b

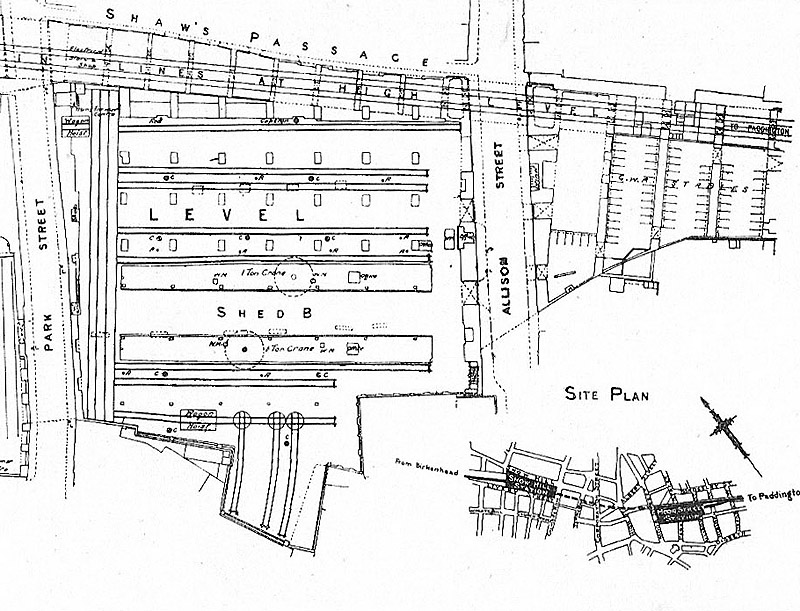

Close up of image 'gwrms1205' showing shed 'B', its boundary
with Park Street on the left, Allison Street on the right and the stable block
opposite on the other side of Allison Street. The Wagon Hoist raising and
lowering wagons from the goods yard above can be seen in the top right hand
corner of the plan. Shed 'B' was equipped with different types of cranes
including two fixed platform cranes on the unloading platforms seen in the
bottom section of the plan. In the section above the two platforms the columns
supporting the travelling crane that ran the length of the shed can be seen. On
the left, at the Park Street end of the shed is the traverser that moved wagons
from each siding to the Wagon Hoist for lifting to the surface level goods
yard. A second Wagon Hoist was provided via the siding seen, in the bottom
portion of the plan, with three sidings providing storage running at
right-angles to the main siding accessed via wagon turntables.
