GWR Route: Banbury to Wolverhampton

Moor Street Station: gwrms2747

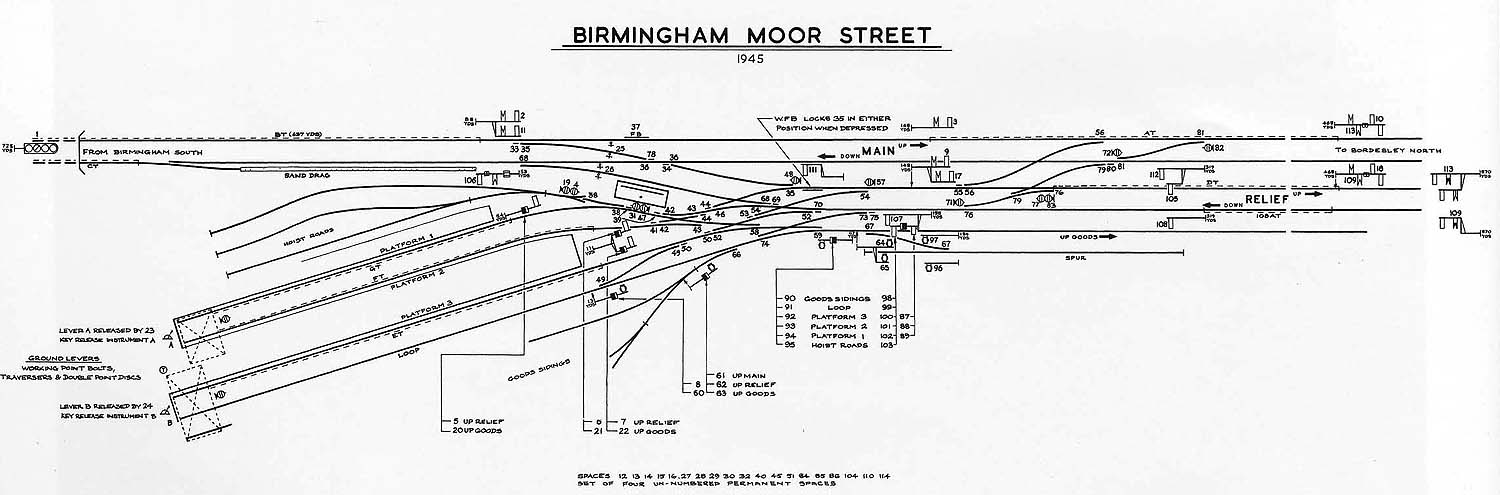

A schematic of the Signalling Diagram to Moor Street Signal Box which controlled the lines to the north and south of the station. Only the lines controlled by the signal box were displayed as the other lines within the confines of the goods shed were operated manually by the shunters.
