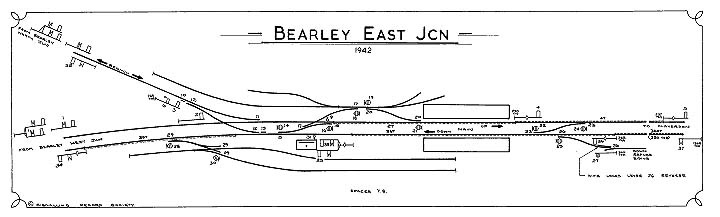

Bearley Junction: sig-diag-bearley-east1942
A low resolution version of the Signalling Diagram for
Bearley East Junction Signal Box dated 1942 produced courtesy of the Signalling
Record Society (S.R.S.). Details of how to purchase their full resolution
content is available here. With the doubling of the
line to Hatton in 1939 and additional sidings for military traffic, the
signalling arrangements at Bearley East Junction changed again and the 1907
thirty-one lever frame was replaced with a new thirty-seven lever, vertical
tappet, three bar locking frame on 30th November 1938. The opening hours of
Bearley East Junction Signal Box for a selection of years are
given:
Service
Time Table |
Signal
Box Opened |
Signal
Box Closed |
Sundays |
Mondays |
Other
weekdays |
Sundays |
Summer 1939 |
10:00 a.m. 6:20
p.m. |
1:30 a.m. |
Open
Continuously |
2:00 a.m. 3:30
p.m. 10:00 p.m. |
Winter 1945 |
Closed |
6:00 a.m. |
6:00 a.m. |
11:00 p.m. |
Closed |
The Signal Box here controlled the block sections on the
double lines towards Bearley West Junction and the new signal box at Claverdon,
plus the token apparatus for the north curve single line to Bearley North
Junction. The Signalman sent messages to the preceding Signal Box to give
permission for trains to enter the block section on their line and used signals
to indicate to train drivers when they were allowed to proceed. Distant
Signals, distinguished by their forked tails and yellow colour (post September
1927) gave train drivers advance warning of the status of the next
Stop Signal. The single line was operated using a sets of token
apparatus. Only one token could be released from the set at any one time and
this was given to the locomotive driver when he entered the single line section
and surrendered when he left. This way no more than one train or engine could
occupy the single lines.
The Signal Box also controlled train movements associated
with the station yard and sidings in addition to the north curve single line.
The Signalman could set a route with the point switch levers. These were
interlocked with various types of signals (including ground signals and route
indicators), operation of which informed the locomotive driver of the selected
route and when to proceed. This interlocking with signals ensured that these
indicated to other trains, when they could no longer proceed safely and had to
stop.
Visibility was important in the days before track circuits
and the Signal Box was positioned where it could oversee the most complex
trackwork.
Robert Ferris
