LMS Route: Evesham to Birmingham

Evesham Station: mre1343

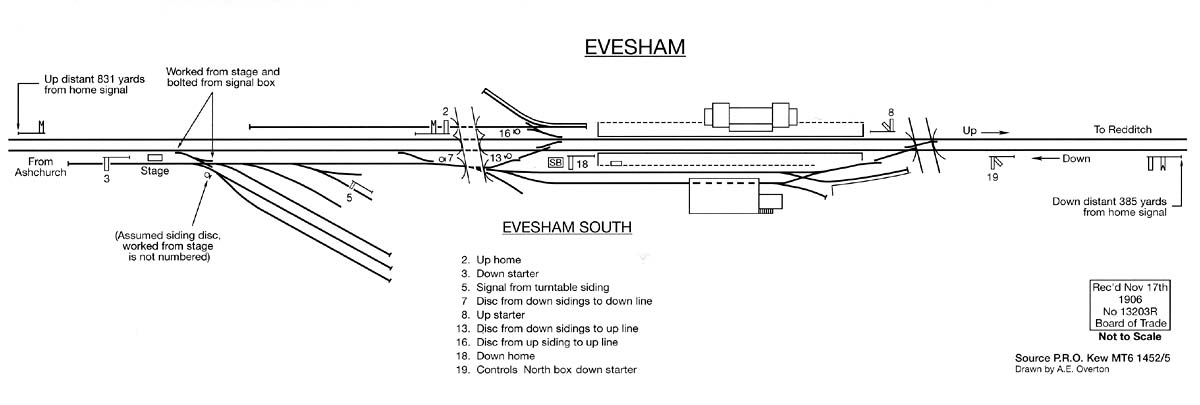

The 1906 schematic drawing of the signalling diagram showing the changes to the Ashchurch end of the station

The 1906 schematic drawing of the signalling diagram showing the changes to the Ashchurch end of the station. The principal changes being the addition of sidings three sidings and modification to existing sidings and head shunt. Approval for the work was given by the Board of Trade on 15th March 1906. The Stage referred to in image 'mre1340' can be seen in this schematic drawing.
