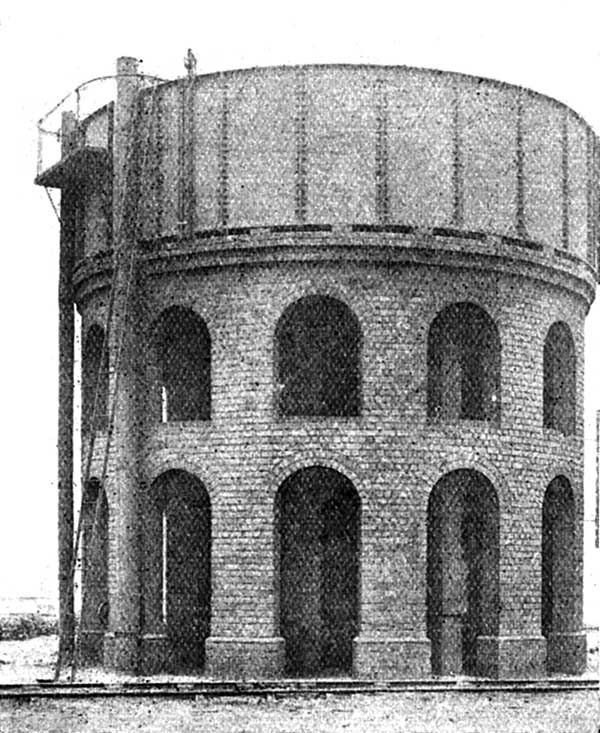

View of the large water tank with a capacity of 22,450
gallons provided at Bordesley engine shed by the GWR. The 22,450 gallons were
accommodated by a 26 feet 6 inches diameter tank. The tank wall being
constructed from twenty cast iron plates, each one being seven foot long and
riveted to its neighbours. The circular water tank was supported on two
concentric brick walls. These walls were pieced at two levels with arches,
which gave a pleasing appearance. Access to the water inlet and float mechanism
at the upper level was by ladder to a high level platform. Adjacent to the
water tank were two associated buildings; the pump house and boiler house. This
water tank was dismantled in 1909, after the new engine shed at Tyseley had
rendered the Bordesley shed redundant and the space was subsequently used in
connection with the quadrupling of the main line following construction of the
North Warwickshire line. Prior to dismantlement of the tank it was discovered
that one of the cast iron plates was impressed with the words Reading
Water Works Company, 1844. Barret Exhall and Andrews, Reading.
Robert Ferris
