Birmingham Snow Hill Station: gwrbsh1744
|

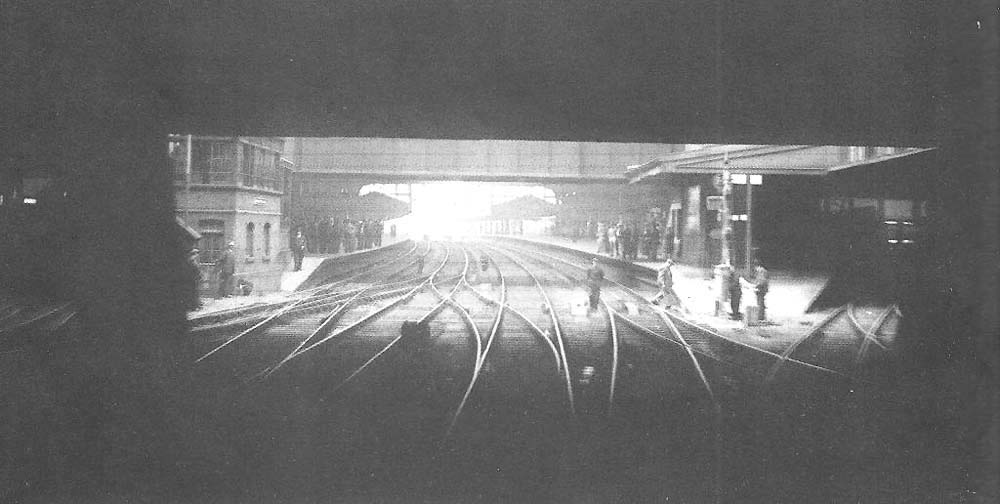

View of Birmingham Snow Hill station from the rear of a
departing up train in the post grouping period. Birmingham South Signal Box is
on the left at the end of the main down platform (Nos 5 and 6), while directly
behind the departing train is the main up platform (Nos 7 and 8). These
platforms each had two platform numbers because they were long enough to
accommodate two trains. A centrally placed scissors cross-over switching
arrangement allowed following trains to use the central through tracks to
depart first if required or a later arriving train to pull in front of another
stationary train. These platforms were also both island platforms and each had
a second platform face; the down side being numbered Nos 1 and 2 and the up
side, visible on the right, numbered No 11 and 12. In all cases the lower (odd)
platform number was on the south side nearest the tunnel entrance from where
this photograph was taken. As well as allowing better utilisation of the long
platforms, the central tracks acted as through lines for freight services and
facilitated shunting when it was necessary to attach or detach additional
carriages or wagons (eg horse boxes, parcel vans, fish wagons or milk
tankers).
Robert Ferris
