Birmingham Snow Hill Station: gwrbsh1768
|

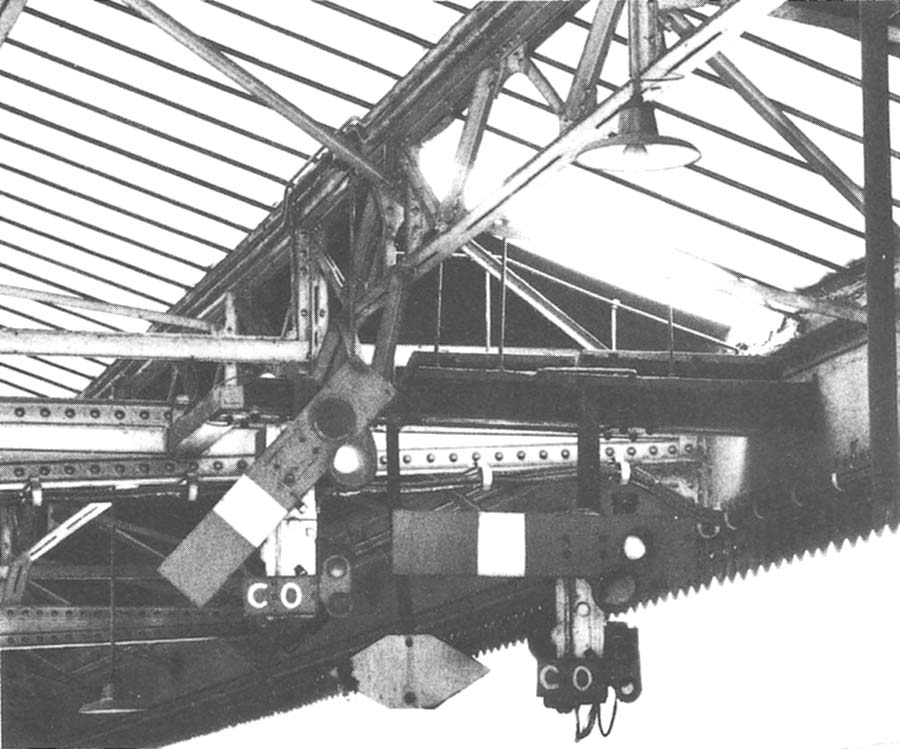

The starting signals under the canopy at the end of down
platform No 5 (see signal diagram in image 'gwrbsh1769') were 241 yards from the Birmingham South
Signal Box. These lower quadrant semaphore home signals protected the down
scissors cross-over switch junction. On the left, set to the clear position, is
the starting signal for the platform (No 6) line operated by lever 87 from
Birmingham South Signal Box. On the right, set to danger, is the starting
signal for movement to the central main line. This was operated by lever 85
from Birmingham South Signal Box. Due to the restricted space under the canopy
both of these starting signals were pivoted close to the centre of their signal
arm. Below each of these two starting signals are two shorter Calling
On subsidiary signal arms with the letter 'CO' in white on the enamelled
red arms. These signals were operated from Birmingham South Signal Box levers
86 and 84 respectively and were used for authorising a driver to draw forward
past the associated starting signal as far as the line was clear. Unless
instructions are issued to the contrary the Calling On signal must
not be lowered until the train has been brought to a stand at it (Rule 43 -
1923). All of these signals were part of the power system installed by Siemens
at Snow Hill. In addition to the motors which operated the signal arms, the
signals also had electric lamps. The white diamond was a later addition and is
an indication to the driver that there is a track circuit. Track circuits
indicate to the signalman the presence of a train on a specific section of
track and can also be used to block other potentially dangerous operations.
Robert Ferris
