Henley in Arden - New Station: gwrha1391

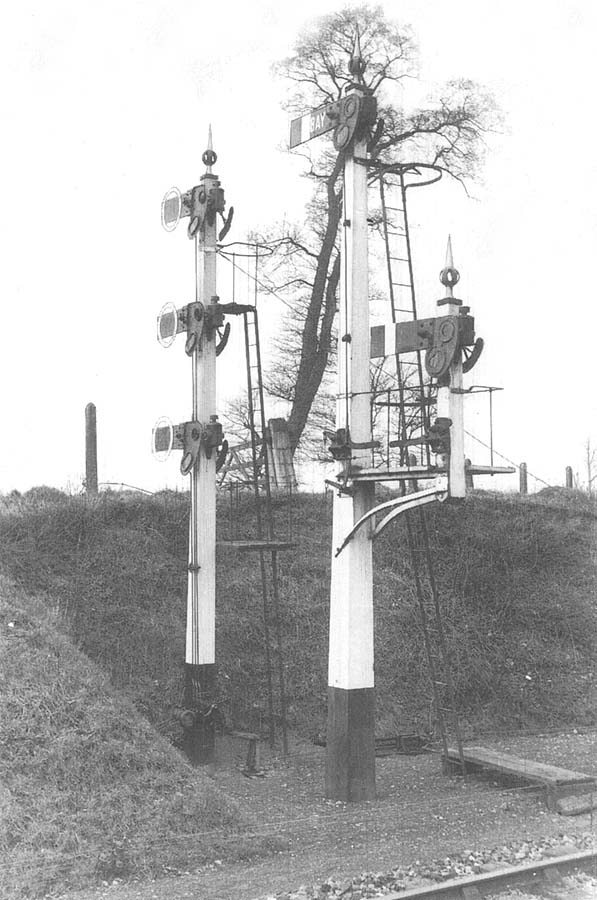

View of the gantry signal with the signal on the left
controlling the loop line, which runs parallel to the bay line behind the up
platform in April 1953. The Great Western Railway used ringed signal arms for
goods or loop lines. On this signal post; the top ringed starting signal (lever
24) indicates the status of the route from the loop to the head shunt spur, the
middle ringed starting signal (lever 23) indicates the status of the route from
the loop to the up main line, while the lower ringed starting signal (lever 44)
indicates the status of the route from the loop to the down main line / branch
line. The signals on the right controls the bay line, with the upper main
starting signal (lever 4) indicating the status of the route from the bay to
the up main line, while the lower starting signal on the bracket (lever 10)
indicates the status of the route from the bay to the down main line / branch
line.
