GWR Route: Banbury to Wolverhampton

Widney Manor Station: gwrwm1909

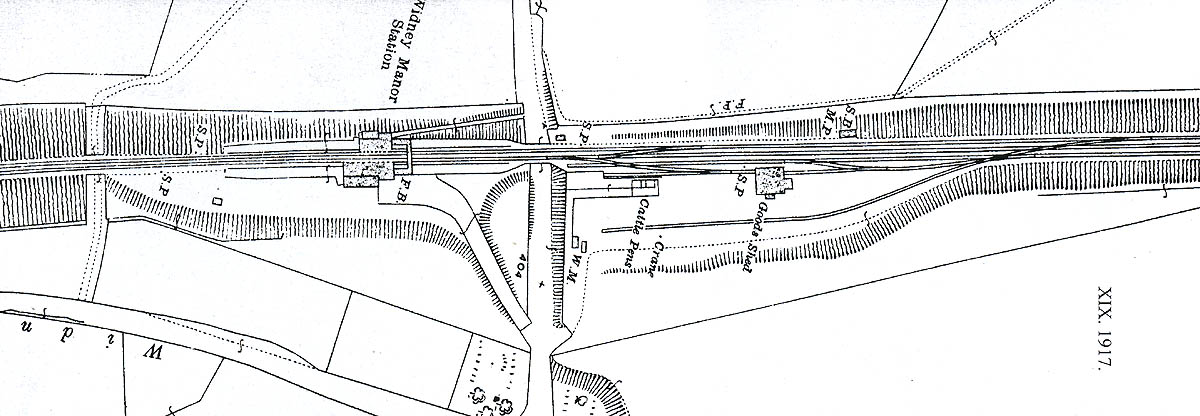

Widney Manor station layout prior to the quadrupling of the lines showing the station approach

Widney Manor station layout prior to the quadrupling of the lines showing the station approach. The station was located on the Leamington side of Widney Lane, which ran beneath the railway. The main station buildings were located on the up platform whilst the goods yard was also accessed from the up line via a refuge siding which also acted as a loop siding for the goods yard. The goods yard was equipped with a goods shed which could be accessed from both sides via the loop line having a through line passing through on one side of the structure. This through line also led on to the Cattle Pens. The goods yard had one long siding for general goods and at the far end of the siding was a hand operated crane.
