Harbury Cement Works: misc_hcw169
|

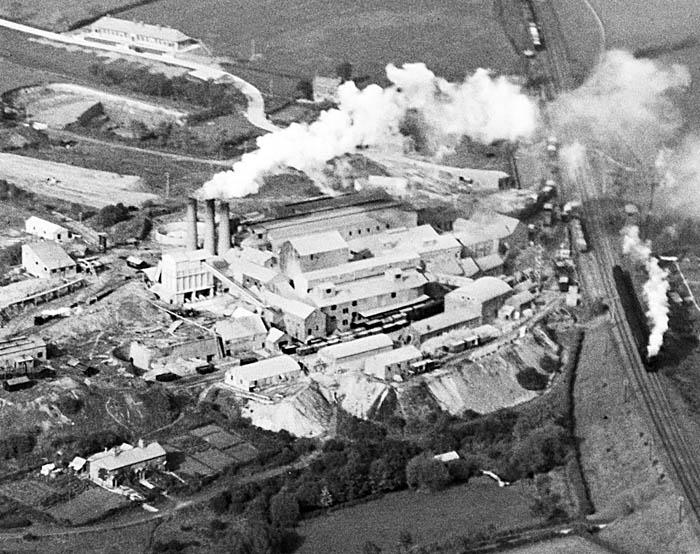

An aerial photograph of the Harbury Cement works dated 29th
October 1927, with the Great Western Railway Birmingham Main line clearly
visible on the east (right) of the works. An exchange siding which originally
had head shunts at each end ran parallel to the main line and was connected to
both sides of the main line by the standard trailing switch arrangements. In
July 1907, the northern head shunt was extended as far as Southam Road Station
to provide a Down Goods Line and this was provided with a facing switch
connection to the down main line just north of the works. The trailing switch
connection from the exchange siding to the down main line was retained, but was
repositioned to increase the exchange siding capacity. All the switches and
their associated signals were controlled from a signal box on the opposite side
of the main line. From the southern end of the exchange siding two private
lines provided access to the internal tracks and sidings within the cement
works. Numerous wagons can be seen on the works internal sidings and several on
the exchange siding. The Harbury Cement works was purchased by the Red Triangle
Group in 1927 and was operating three kilns. Courtesy of English Heritage
Aerofilms Collection (Catalogue number 19692).
Robert Ferris
