Bromford Bridge Station: mrbb1679

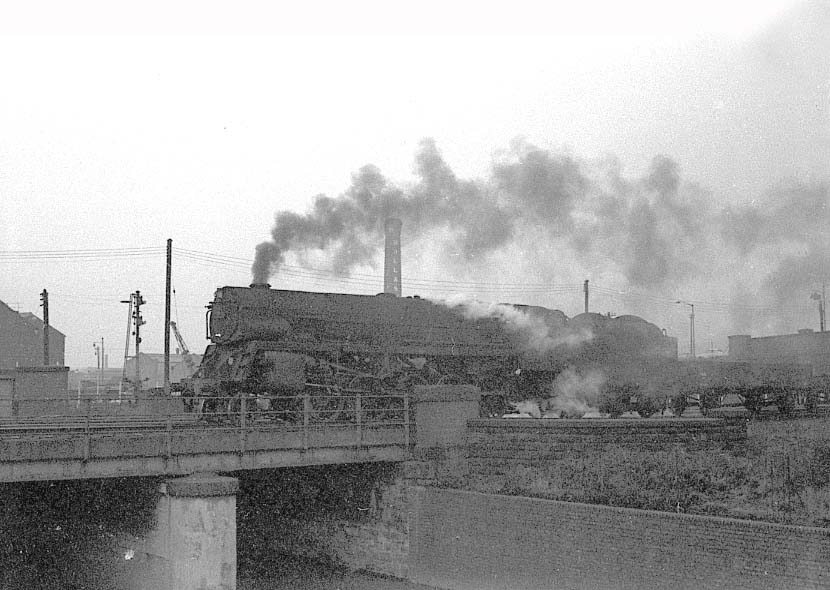

An unidentified former Franco-Crosti boilered 8F 2-10-0 locomotive passes over the River Tame with a Class F express freight service

An unidentified former Franco-Crosti boilered 8F 2-10-0 locomotive passes over the River Tame with a Class F express freight service. The smoke being emitted from the chimney confirms that the locomotive has been reverted to a more traditional boiler format. The Franco-Crosti boiler took the form of a single cylindrical water drum running along the underside of the main boiler barrel; the standard chimney at the front was only used during lighting-up, in normal working the gases went through firetubes inside the preheater drum that led to a second smokebox situated beneath the boiler from which there emerged a chimney on the right-hand side (fireman's), just forward of the firebox.

In the event, the experiment did not deliver the hoped-for benefits, and efficiency was not increased sufficiently to justify the cost and complexity. Moreover, conditions were unpleasant on the footplate in a cross-wind, this in spite the later provision of a small deflector plate forward of the chimney. These problems led to the subsequent sealing off of the preheater drum, over the period 1959-1961, and the locomotives were then worked conventionally. As a result of this, there was a reduced ability to generate steam, and so their power classification was reduced from 9F to 8F.
